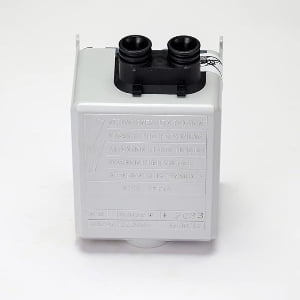

The Riello 530SE is an oil burner control box, supplied under Riello spare-part number 3001156. It manages the burner start-up sequence, ignition and oil valve operation, with photoresistive flame supervision and an illuminated manual-reset button.
Start-up and Flame Supervision
- The burner motor starts on a heat demand, followed by a prepurge period of approximately 12 seconds.
- Ignition and oil valve opening follow the prepurge sequence.
- If a flame is not established, the controller locks out after approximately 5 seconds of the ignition safety period.
- The lockout indicator and reset button provide local fault indication and manual reset.
Electrical Connections and Construction

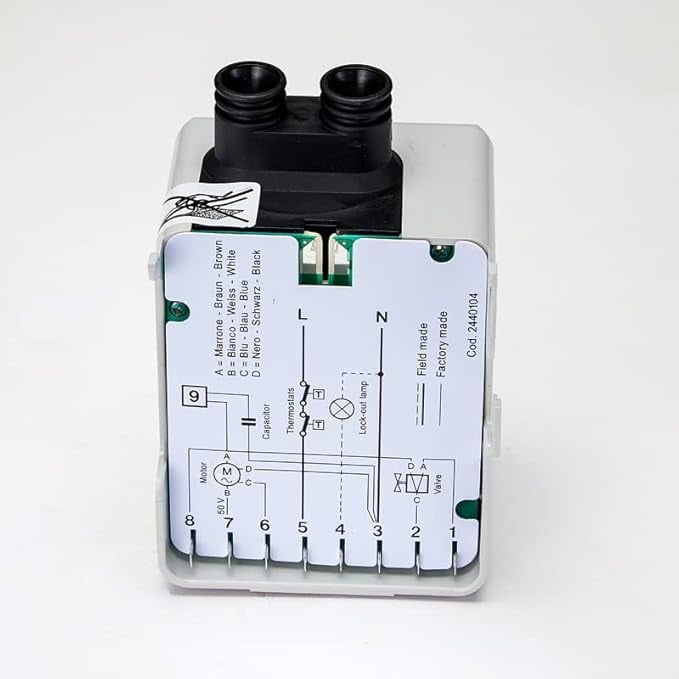

The 530SE uses a plug-in terminal board and incorporates the ignition transformer. The photoresistive flame detector plugs into the controller beneath the transformer. The wiring diagram provides a connection for an external lockout lamp rated at 230 V, 0.5 A maximum.
Riello lists the terminal board as 3002278 and the photoresistive detector as 3002280. These components have separate spare-part references from the 3001156 control box.
Burner Applications
Applications include Riello 40 G3, G3B, G5, G10, G10I, G20, G20I, G20D, G20S, F5 and F10 oil burners. Use the model list below to find your burner. For replacement enquiries, send us the burner model and a photo of the existing controller label.
