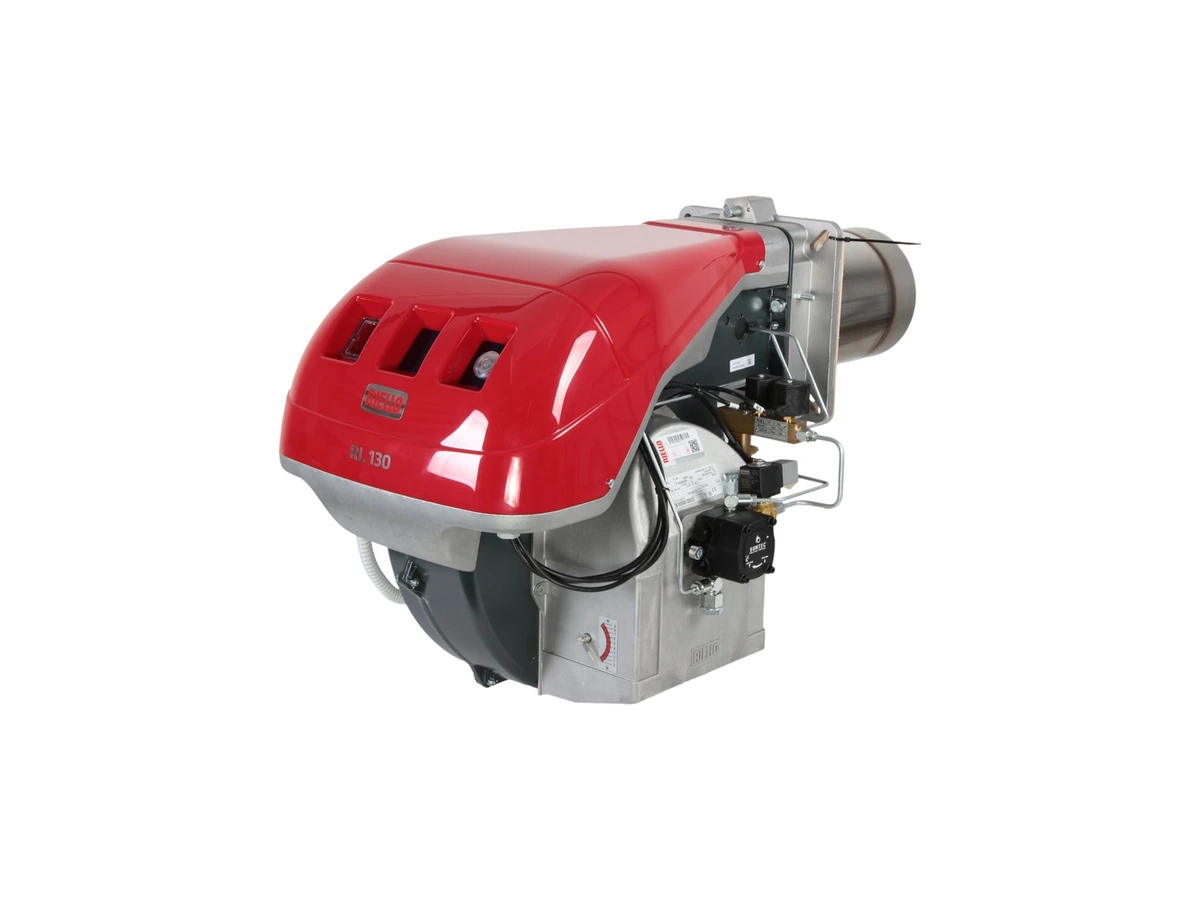

The Riello RL 130 is an automatic monobloc forced-draught light oil burner with two-stage operation and a firing range of 486/948–1540 kW. Two-nozzle firing is combined with hydraulically controlled combustion-air adjustment.
Product Specification
- Centrifugal fan with backward-curved blades and an acoustically lined air intake.
- Air damper positioned by an adjustable hydraulic actuator.
- Adjustable combustion head with a stainless-steel end cone, ignition electrodes and flame-stabilising disc.
- AJ6CC gear pump with an integral filter, pressure regulator, pressure/vacuum gauge ports and a single-pipe conversion bypass.
- Oil valve assembly with one safety valve and two delivery valves.
- Photocell flame detection and microprocessor burner control with diagnostic functions.
- On/off switch, manual stage selector, flame inspection window and slide-bar service access.
- Radio-interference filter.
Electrical and Operating Data
- Motor supply: 400 V, three-phase with neutral, 50 Hz.
- Auxiliary supply: 230 V, single-phase, 50 Hz.
- Fan motor: 2.2 kW; total electrical input: 2.6 kW.
- Electrical protection: IP44.
- Motor speed: 2,800 rpm.
- Light oil viscosity: 4–6 mm²/s (cSt) at 20°C.
Standard Equipment
- Two flexible oil hoses with gaskets and two pump connection nipples.
- Four boiler-flange fixing screws and a thermal screen.
- Installation, operation and maintenance manual; spare-parts catalogue.
Oil nozzles: ordered separately.
