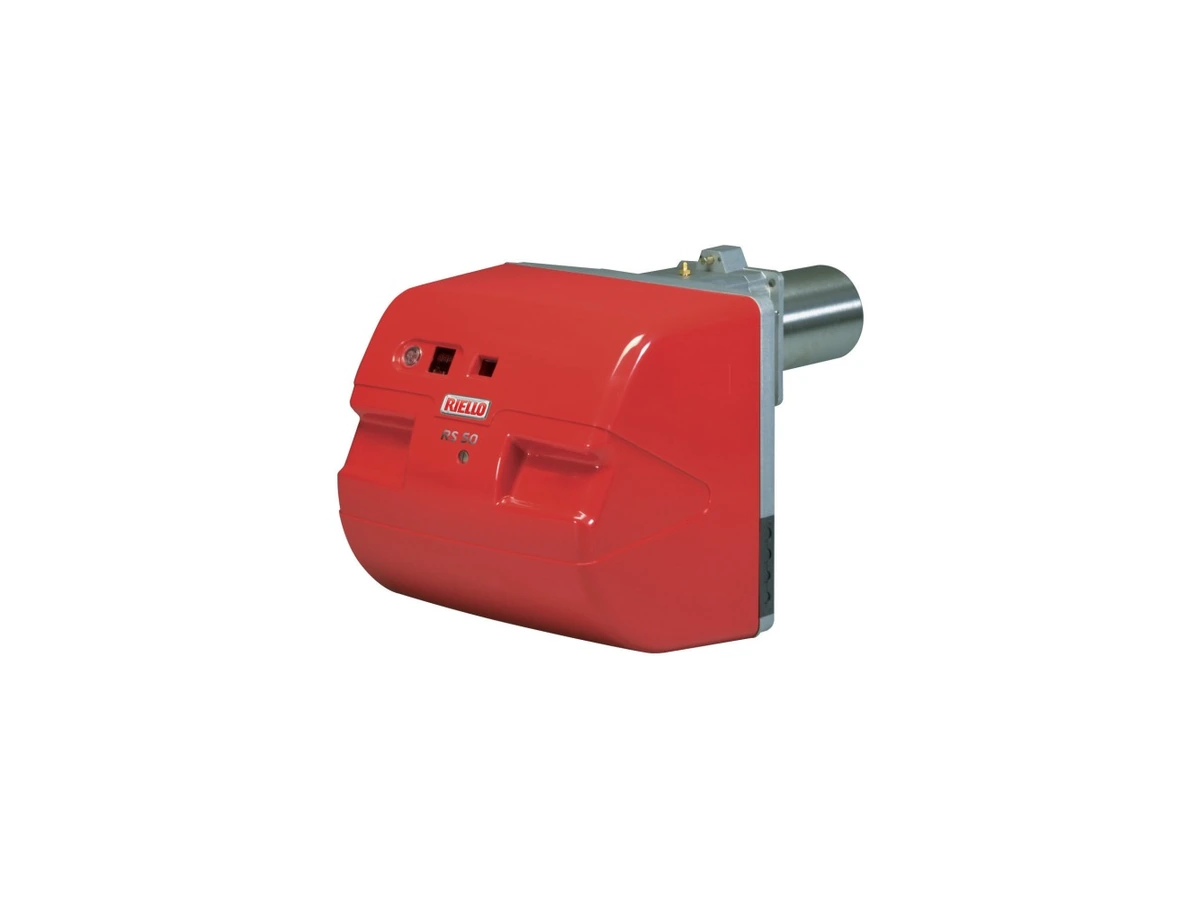

The Riello RS50/M TC is an automatic monobloc forced-draught gas burner with progressive two-stage or modulating operation and a firing range of 80/285–630 kW.
Progressive two-stage operation; continuous modulation with a PID regulator and the corresponding probe.
Product Specification
- Backward-curved centrifugal fan and an acoustically lined air intake.
- Variable-cam servomotor controlling the air damper and gas butterfly valve.
- Adjustable combustion head with a stainless-steel end cone, ignition electrodes, ionisation probe, gas distributor and flame-stabilising disc.
- Minimum air-pressure switch.
- Microprocessor burner safety control with diagnostic functions.
- On/off switch and manual/automatic output increase-decrease selector.
- Flame inspection window and slide bars for installation and servicing.
- Radio-interference filter.
- Maximum gas-pressure switch.
Electrical Data
- Power supply: 400 V, three-phase with neutral, 50 Hz.
- Motor speed: 2,800 rpm.
- Electrical protection: IP44.
- Auxiliary supply: 230 V, 50/60 Hz.
- Total electrical input: 0.75 kW.
Standard Equipment
- Gas-train connection flange, flange gasket and four fixing screws.
- Thermal screen and four boiler-flange fixing screws.
- Wiring-harness fittings.
- Installation, operation and maintenance manual; spare-parts catalogue.
