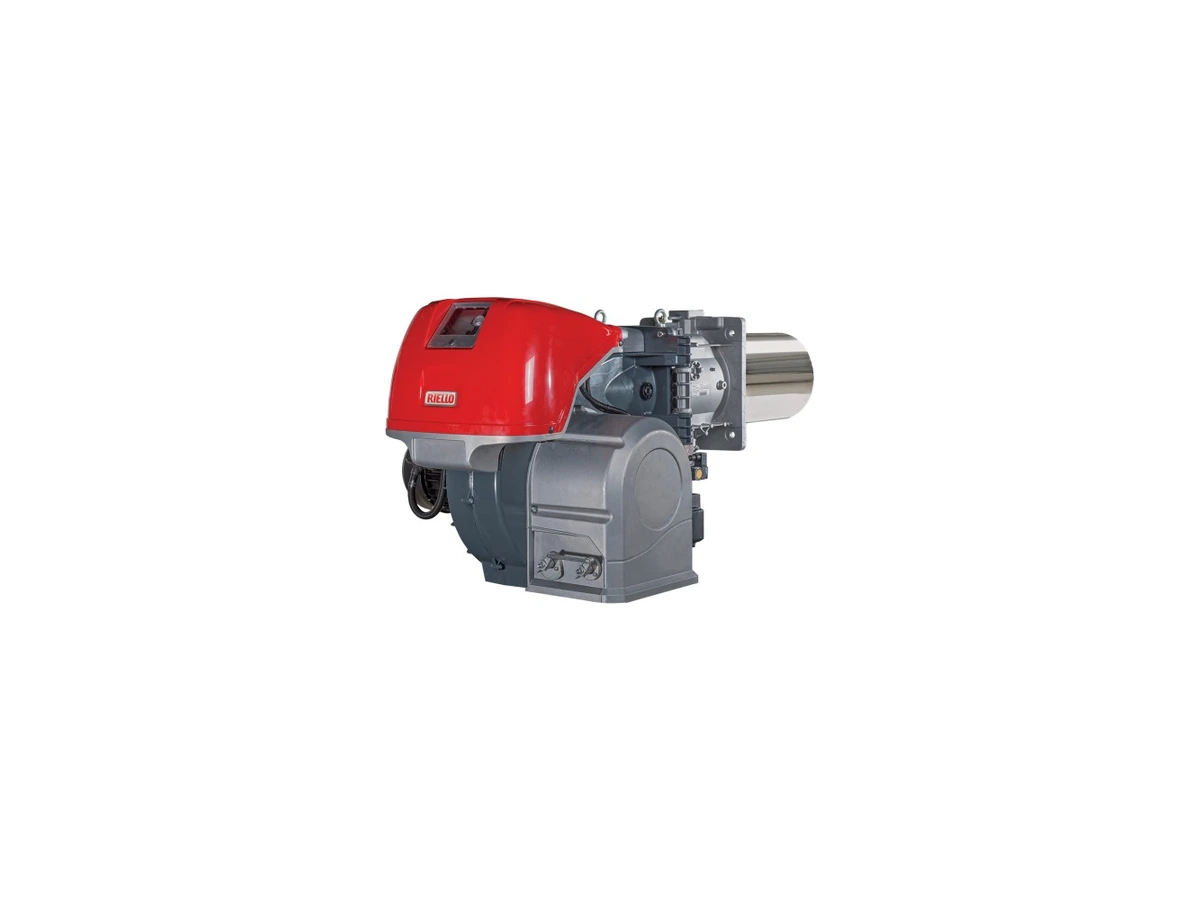

The Riello RS 810/E BLU is an automatic monobloc forced-draught Low NOx gas burner with electronically modulating operation and a firing range of 1200/3500–8010 kW.
Product Specification
- Forward-curved centrifugal fan and an acoustically lined air intake.
- Independent precision servomotors for combustion-air and gas-output adjustment.
- Adjustable Low NOx combustion head with a stainless-steel end cone and flame-stabilising disc.
- Air-pressure switch and maximum gas-pressure switch.
- REC37 electronic burner management with AZL display; PID load control uses an external accessory. The RS 810/E O2 BLU version uses LMV52 with integrated PID and is prepared for oxygen control.
- Ionisation flame detection.
- Motor contactor and resettable thermal relay.
- On/off switch, manual/automatic output selector and illuminated lockout reset.
- Hinged burner opening and lifting rings.
Electrical Data
- Power supply: 400 V, three-phase with neutral, 50 Hz.
- Motor speed: 2,900 rpm.
- Electrical protection: IP54.
- Total electrical power: 24.5 kW.
- Auxiliary supply: 230 V, 50/60 Hz.
- Fan motor voltage versions: 230/400 V or 400/690 V, three-phase with neutral, 50 Hz.
Standard Equipment
- Gas-train adaptor, gasket and M16 × 70 fixing screws.
- Thermal insulation screen and M18 × 60 boiler-flange fixing screws.
- Electrical cable-grommet kit.
- M16 studs and nuts for the gas-elbow connection.
- Installation, operation and maintenance manual; spare-parts catalogue.
