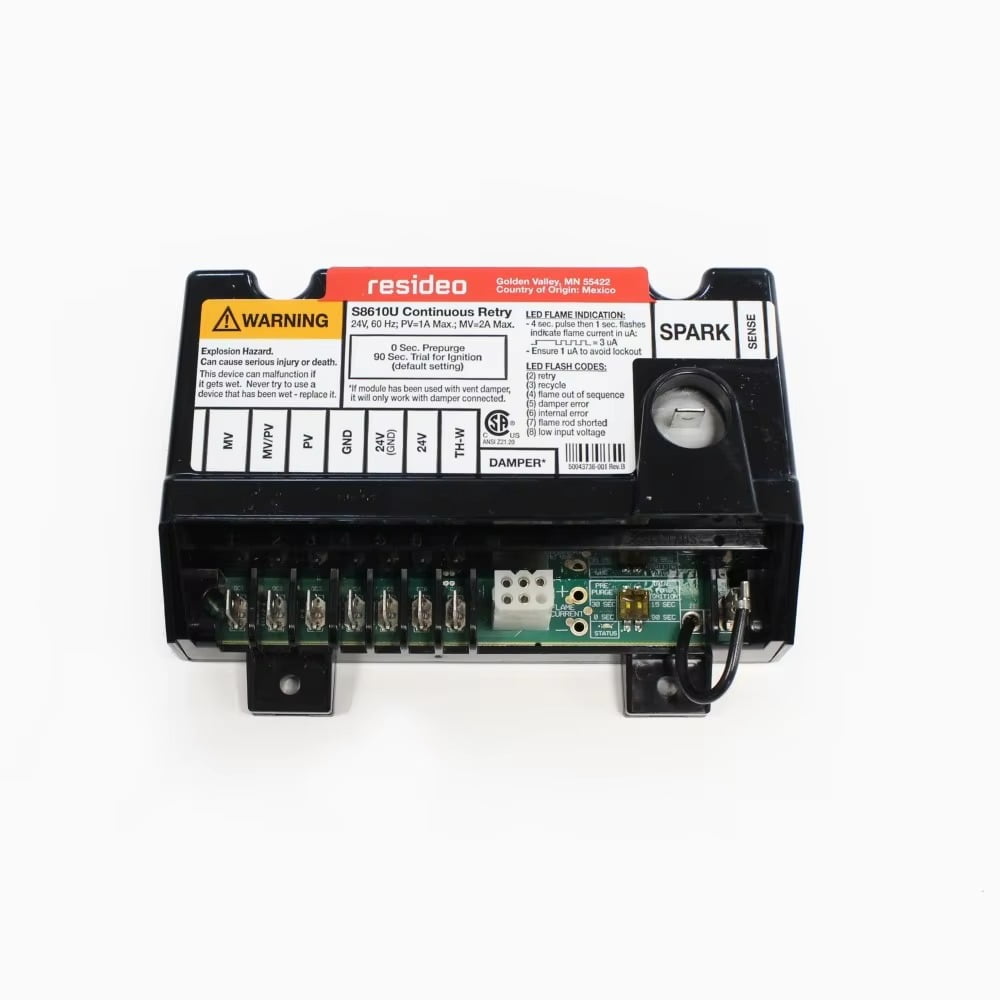

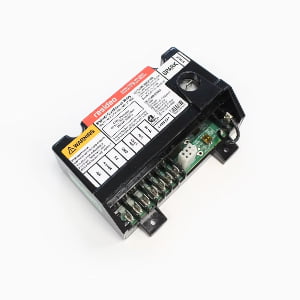

The Resideo S8610U3009 is a premium, universal replacement ignition module designed to provide reliable electronic control for intermittent pilot ignition systems used in gas-fired furnaces, boilers, and other heating appliances. Engineered for maximum versatility, this module serves as a direct field service replacement for over 400 models from Honeywell, Robertshaw, Johnson Controls, and UTEC, making it an essential solution for HVAC professionals.
Key Features & Benefits
-
Universal Compatibility: Designed to replace a wide range of intermittent pilot ignition modules, ensuring broad application coverage with a single SKU.
-
Field-Selectable Configuration: Features customizable DIP switch settings for prepurge timing (30 seconds or none) and trial for ignition (15 or 90 seconds), allowing technicians to match specific appliance requirements easily.
-
Dual Sensing Capability: Compatible with both single-rod (local sense) and dual-rod (remote sense) flame sensing systems.
-
Advanced Diagnostics: Equipped with an on-board LED status indicator that provides real-time feedback on flame strength and system errors, significantly streamlining troubleshooting and maintenance.
-
Robust Safety Protocols: Provides 100% pilot gas shutoff if the pilot fails to light. It utilizes a continuous retry sequence (with a 5-minute delay) to ensure safe and reliable operation.
-

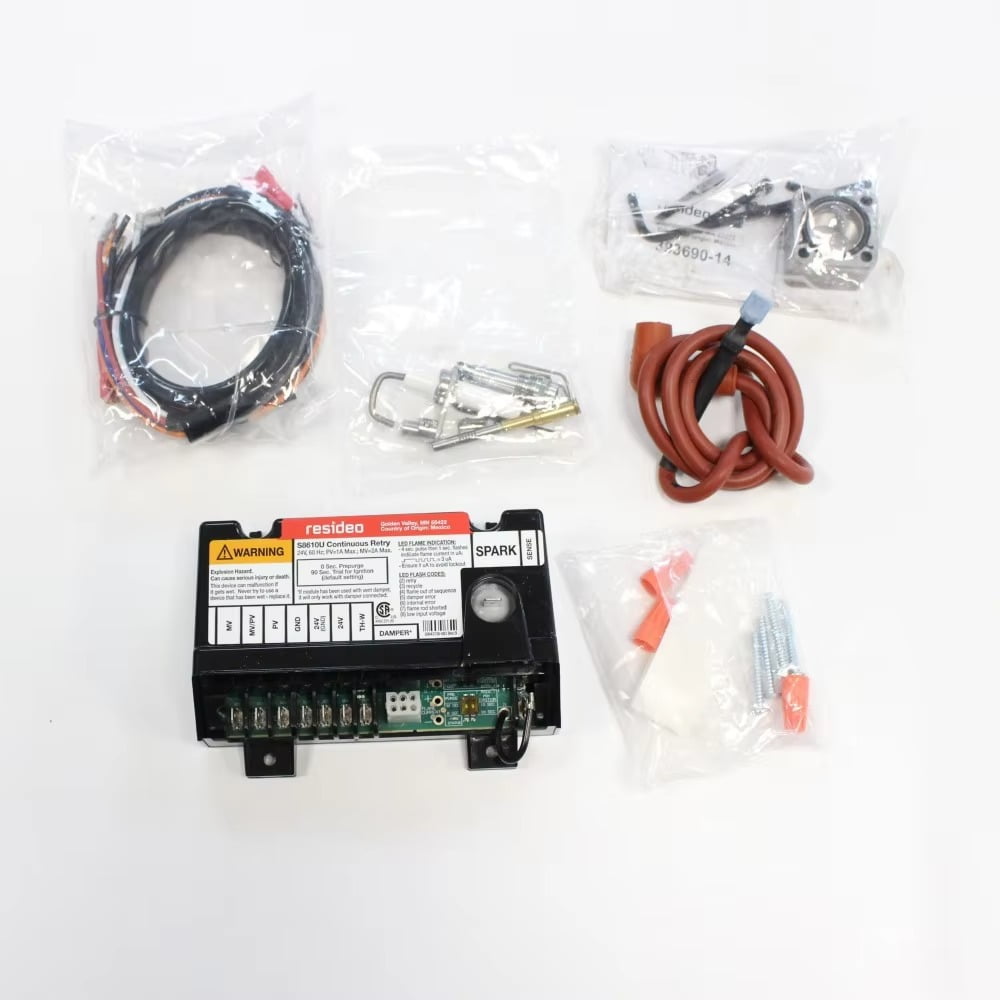

Installation Ready: Ships with spark cable adapters to facilitate seamless connection to existing spark cables, eliminating the need for rewiring during retrofits.
Technical Specifications
-
Voltage: 24 VAC, 60 Hz
-
Gas Type: Natural or LP Gas
-
Ignition Sequence: Continuous Retry
-
Flame Failure Response Time: 2 seconds maximum
-
Ambient Temperature Range: -40°F to +165°F (-40°C to +74°C)
-
Certifications: CSA Design Certified
Ideal For: HVAC technicians seeking a versatile, “truck-stock” solution for repairing and upgrading older intermittent pilot systems with modern, diagnostic-capable technology.
