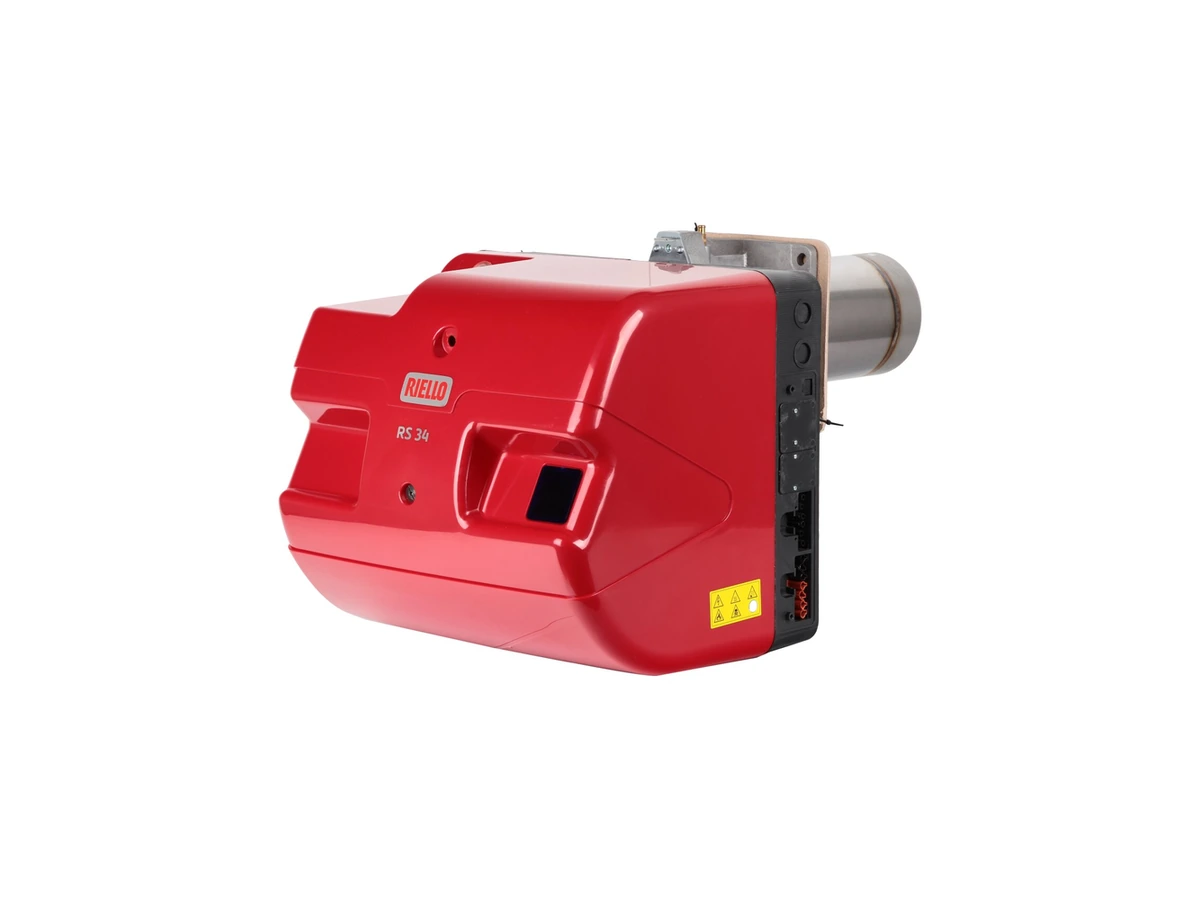

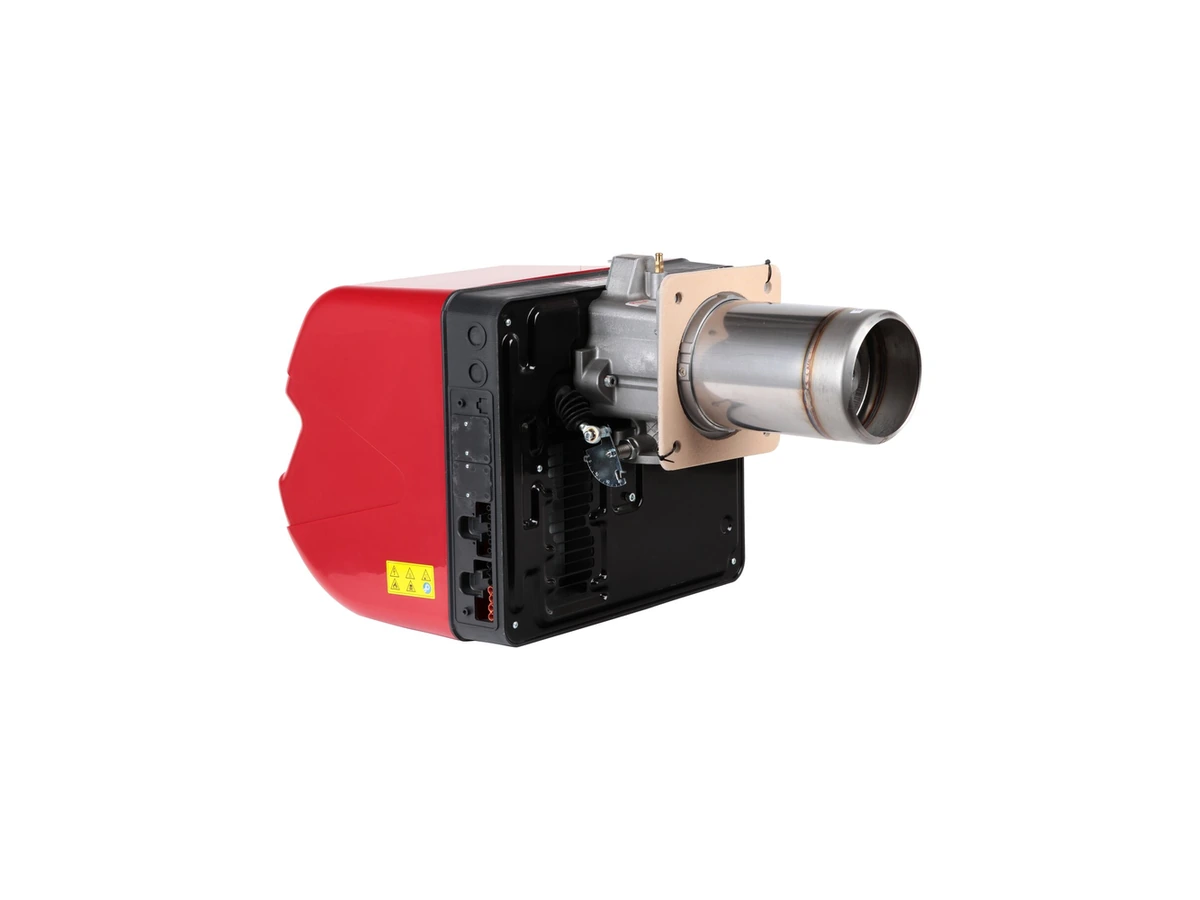

The Riello RS34/M TC is an automatic monobloc forced-draught gas burner with progressive two-stage or modulating operation and a firing range of 45/125–390 kW.
Progressive two-stage operation; continuous modulation with a PID regulator and the corresponding probe.
Product Specification
- Straight-blade centrifugal fan and an acoustically lined air intake.
- Variable-cam servomotor controlling the air damper and gas butterfly valve.
- Adjustable combustion head with a stainless-steel end cone, ignition electrodes, ionisation probe, gas distributor and flame-stabilising disc.
- Minimum air-pressure switch.
- Microprocessor burner safety control with diagnostic functions.
- On/off switch and manual/automatic output increase-decrease selector.
- Flame inspection window and slide bars for installation and servicing.
- Radio-interference filter.
- HCS housing cooling with thermal insulation and continuous air circulation.
- Electrical plugs and sockets accessible from outside the cover.
Electrical Data
- Power supply: 230 V, single-phase, 50/60 Hz.
- Motor speed: 2,800 rpm.
- Electrical protection: IP40.
- Auxiliary supply: 230 V, 50/60 Hz.
- Total electrical input: 0.60 kW.
Standard Equipment
- Gas-train connection flange, flange gasket and four fixing screws.
- Thermal screen and four boiler-flange fixing screws.
- Three electrical connection plugs.
- Installation, operation and maintenance manual; spare-parts catalogue.
