Honeywell C7061A1046 UV Flame Detector

Name: Honeywell C7061A1046 UV Flame Detector
Brand: Honeywell
Price: 700.00 USD

Honeywell C7061A1046 detector showing its keyed electrical connector

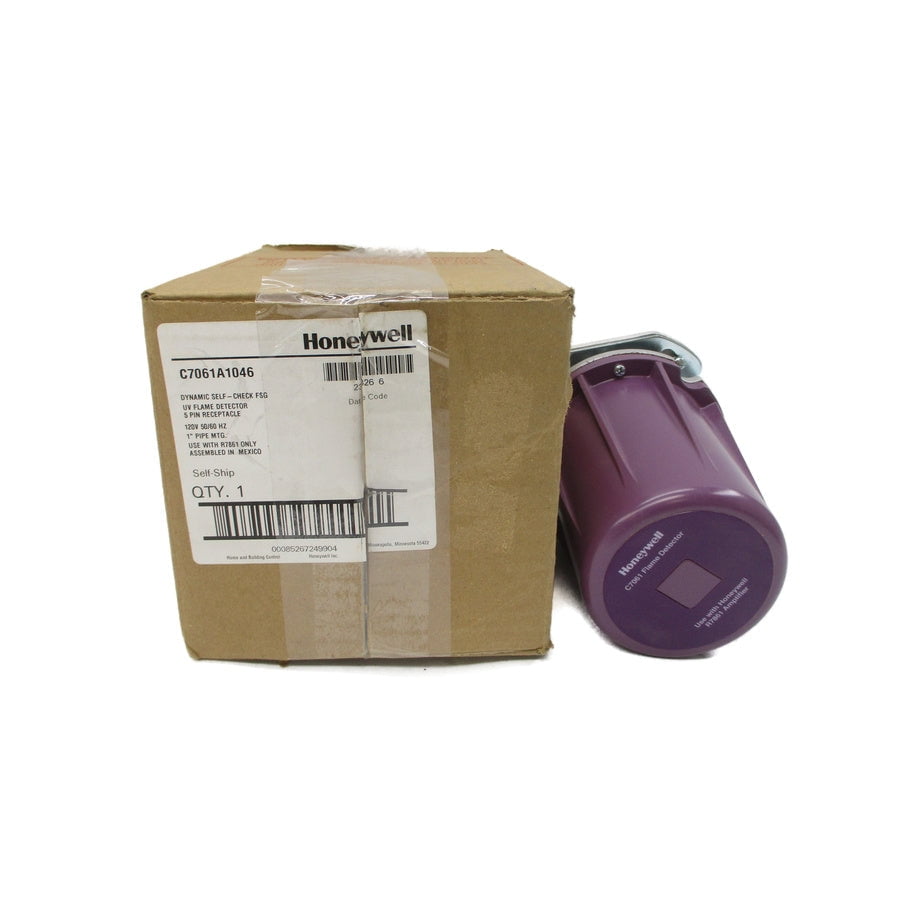

Honeywell C7061A1046 detector beside its labelled packaging

1 / 2

C7061A1046 reference photographs. The pictured unit is not the current supply lot.

Stock supply available

Supplier stock is available. Quantity, condition and dispatch time are confirmed with your quotation.

Technical Specifications

Detection	Ultraviolet (UV)
Compatible amplifier	R7861A; compatible 7800 control
Operating duty	Dynamic self-check
Mounting connection	1 in. NPT; 3/4 in. bushing adapter
Housing	NEMA 4 cast aluminum
Connection	Keyed Molex/Woodhead connector
Supply conditions	Shutter: 120 V AC, 50/60 Hz

Honeywell C7061A / C7061F2 — Operating Instructions (04.24)PDF

Product Overview

Honeywell C7061A1046 is a dynamic self-check UV flame detector with 1 in. NPT mounting. It uses keyed molex/woodhead connector.

Product specification

This receptacle version uses the keyed Molex/Woodhead 1R5006A20A120 connection, formerly Brad Harrison 41310. The current manual identifies matching connector options 105000A01F0302 and 105000A01F0602. The mating cable is a separate selection and must match the installed connector.

Control and installation

Use the matching R7861A amplifier and compatible Honeywell flame-safeguard control. The current C7061 manual also documents SLATE R8001S1051 combinations. Select the complete detector, amplifier and control arrangement for the required flame-failure response; the detector alone does not define a universal response time.

The shutter must be aligned as specified in the installation instructions. Flame sighting and start-up checks must distinguish the supervised flame from ignition sparks and adjacent burners.

Compare mounting, connection and replacement paths in the C7061 series guide.
