Compare Honeywell C7061 dynamic self-check UV detectors by mounting thread, terminal or leadwire connection, focusing lens and explosion-proof housing.
Compare complete models
All models below have supplier stock available for quotation. Open a complete model for its USD price and technical documents.
| Model | Mounting | Connection | Supply | Lifecycle |
|---|---|---|---|---|
| C7061A1053 | 1 in. NPT; 3/4 in. bushing adapter | 8 ft (2.4 m) leadwires | Shutter: 120 V AC, 50/60 Hz | No explicit phase-out notice found |
| C7061A1020 | 1 in. NPT + adapter; older 3/4 in. version | Internal screw terminals | Shutter: 110 / 230 V AC terminals | Manufacturing status unconfirmed |
| C7061A1046 | 1 in. NPT; 3/4 in. bushing adapter | Keyed Molex/Woodhead connector | Shutter: 120 V AC, 50/60 Hz | No explicit phase-out notice found |
| C7061F2001 | 1 in. NPT pipe union | 8 ft (2.4 m) leadwires | Shutter: 120 V AC, 50/60 Hz | No explicit phase-out notice found |
| C7061A1012 | 3/4 in. NPT | 8 ft (2.4 m) leadwires | Shutter: 120 V AC, 50/60 Hz | Discontinued; stock supply |
| C7061A1038 | 3/4 in. NPT | Legacy Brad Harrison connector | Shutter: 120 V AC, 50/60 Hz | Discontinued; stock supply |
| C7061A1061 | 3/4 in. NPT; focusing lens | 8 ft (2.4 m) leadwires | Shutter: 120 V AC, 50/60 Hz | Discontinued; stock supply |
| C7061A1079 | 3/4 in. NPT; focusing lens | Internal terminals; no fixed lead cable | Shutter: 120 / 230 V AC, 50/60 Hz | Discontinued; stock supply |
A technical document is not proof of current factory production. C7061A1020 has conflicting channel lifecycle information. Quantity, condition and dispatch time are confirmed with each quotation.
Connection and housing differences

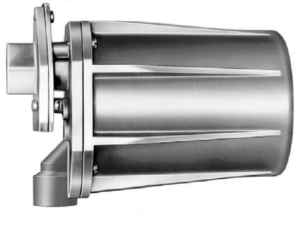

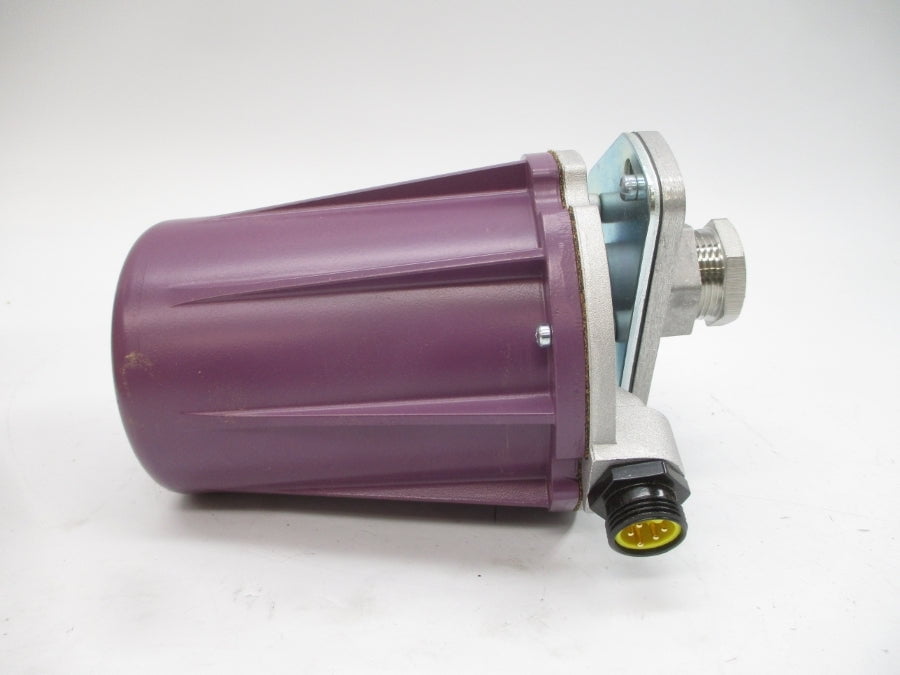

- A1053 uses fixed leadwires; A1046 uses a keyed connector; A1020 uses internal terminals.
- Legacy A1012 and A1038 use 3/4 in. NPT mounting. A1061 and A1079 add a focusing lens.

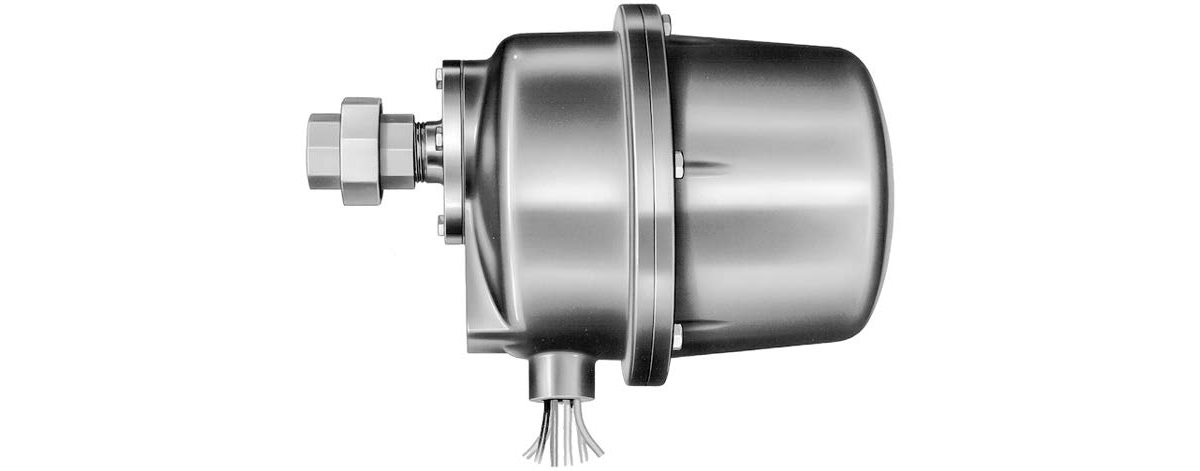

- F2001 uses the C7061F2 explosion-proof housing. Its listed Class I/II groups must not be substituted for the separate F1 ATEX approvals.
Historical replacement paths
- C7061A1012 → C7061A1053. Review the mounting, electrical connection and optical configuration on the original model page.
- C7061A1038 → C7061A1046. Review the mounting, electrical connection and optical configuration on the original model page.
- C7061A1061 → C7061A1053. Review the mounting, electrical connection and optical configuration on the original model page.
- C7061A1079 → C7061A1020. Review the mounting, electrical connection and optical configuration on the original model page.
Amplifier and control
C7061 uses the matching R7861A dynamic self-check amplifier in compatible Honeywell 7800 systems. The current manual also documents SLATE R8001S1051 combinations. Select detector, control and amplifier together; flame-failure response depends on the complete system.
For older R7847 installations, see the C7012 series guide.
