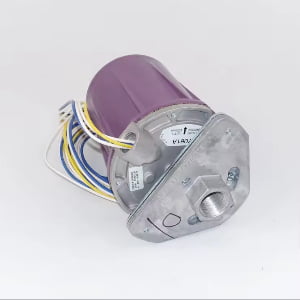

Honeywell C7061A1012 is a dynamic self-check UV flame detector with 3/4 in. NPT mounting. It uses 8 ft (2.4 m) leadwires.
Product specification
This legacy fixed-lead model has a 3/4 in. NPT sight-pipe connection and 8 ft (2.4 m) leadwires. It uses a mechanical shutter for dynamic UV-tube checking with the compatible R7861A amplifier arrangement. The full model reference matters when retaining the original mounting configuration.
Replacement options
The historical Honeywell phase-out table identifies C7061A1053 as the replacement direction. The newer mounting flange is 1 in. NPT with a 3/4 in. bushing adapter. Check the mounting assembly, shutter supply and wiring before substitution.
You can request original C7061A1012 stock using this page. For the alternative, open the linked model or specify a replacement review in your enquiry.
Control and installation
Use the matching R7861A amplifier and compatible Honeywell flame-safeguard control. The current C7061 manual also documents SLATE R8001S1051 combinations. Select the complete detector, amplifier and control arrangement for the required flame-failure response; the detector alone does not define a universal response time.
The shutter must be aligned as specified in the installation instructions. Flame sighting and start-up checks must distinguish the supervised flame from ignition sparks and adjacent burners.
Compare mounting, connection and replacement paths in the C7061 series guide.
