Honeywell C7061A1038 is a dynamic self-check UV flame detector with 3/4 in. NPT mounting. It uses legacy brad harrison connector.
Product specification
This legacy model combines a 3/4 in. NPT mounting connection with a Brad Harrison electrical connector. It is not the fixed-lead A1012 configuration. Retain the connector and mating-cable details when specifying replacement stock.
Replacement options

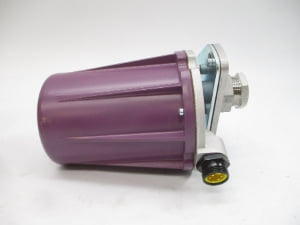

The historical Honeywell phase-out table points to C7061A1046. Its 1 in. NPT mounting connection and keyed Molex/Woodhead receptacle must be checked against the existing sight pipe and mating cable.
You can request original C7061A1038 stock using this page. For the alternative, open the linked model or specify a replacement review in your enquiry.
Control and installation
Use the matching R7861A amplifier and compatible Honeywell flame-safeguard control. The current C7061 manual also documents SLATE R8001S1051 combinations. Select the complete detector, amplifier and control arrangement for the required flame-failure response; the detector alone does not define a universal response time.
The shutter must be aligned as specified in the installation instructions. Flame sighting and start-up checks must distinguish the supervised flame from ignition sparks and adjacent burners.
Compare mounting, connection and replacement paths in the C7061 series guide.
